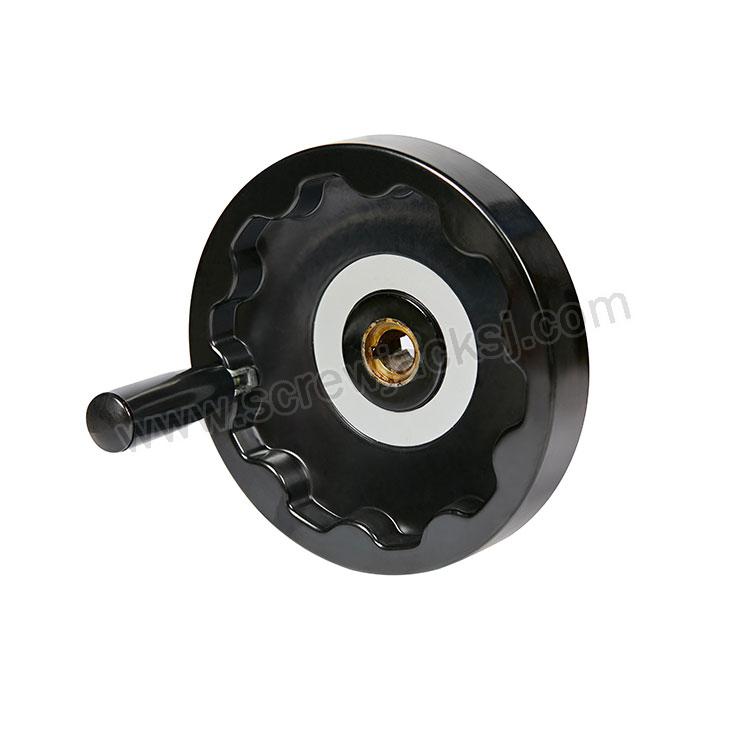

A handwheel is a convenient solution for manually operating a jack when using screw jacks in intermittent positioning applications. Our handwheel offers a range diameter from 100mm to 400mm as a standard and is generally suitable for trapezoidal screw jack up to 15 tons load capacity model.
Handwheels do not include a brake and therefore are not adapted for ball screw jacks application.

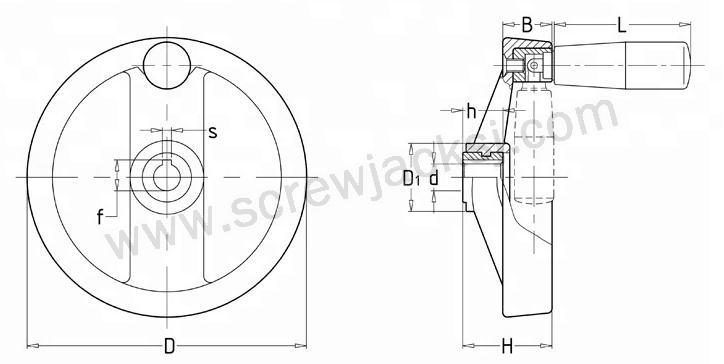

| Model | D | d | h | H | B | D1 | s | f | L |
| HW100 | 100 | 12 | 17 | 38 | 21 | 22 | 4 | 13.8 | 50 |
| HW125 | 125 | 12 | 18 | 40 | 22 | 22 | 4 | 13.8 | 63 |
| HW160 | 160 | 16 | 20 | 51 | 24 | 25 | 5 | 18.3 | 80 |
| HW200 | 200 | 18/20 | 25 | 63 | 30 | 32 | 6 | 20.8 | 80/100 |
| HW250 | 250 | 22/25 | 28 | 75 | 36 | 41 | 8 | 28.3 | 100 |
| HW320 | 320 | 25/28 | 32 | 87 | 42 | 45 | 8 | 28.3 | 100 |
| HW400 | 400 | 28/30 | 40 | 99 | 50 | 52 | 10 | 28.3 | 120 |
